Most Popular Take-up for Automotive Wire

2016-11-29

SPS400 was developed in 2013 to meet the stringent requirements for automotive wire packaging which the traditional packaging cannot achieve.

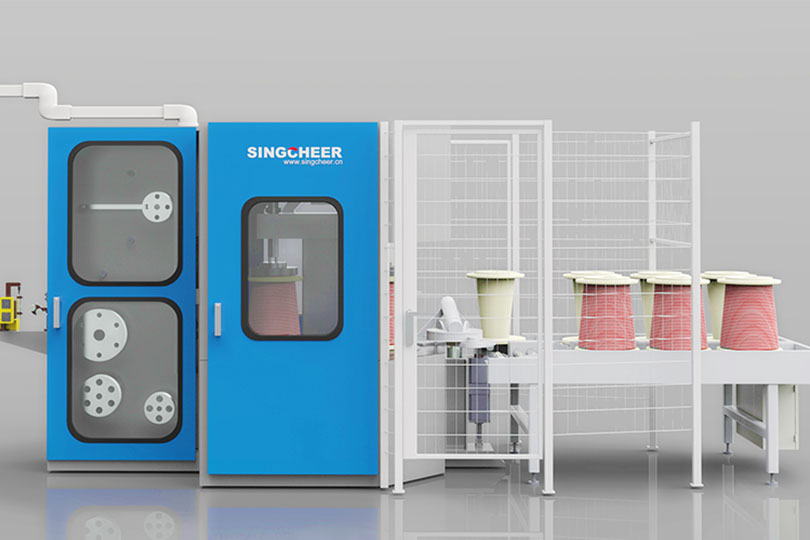

SPS400 cone reel take-up with pulling and dancing wheel device itself. The take up reel is put on one rotation platform, shift by rotating the platform without stop or reduce the line speed. All the action like wire inlet, wire press, meter counter, wire layout, wire take-up, wire cut, reel change, full reel transport and empty reel transport are controlled by the PLC system.

Advantages compared with traditional packaging

1、Harness processing is not easy to tie the line

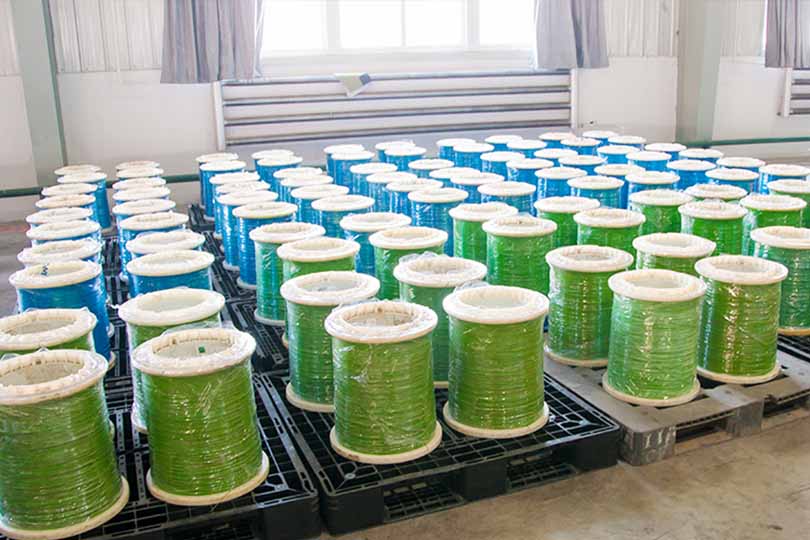

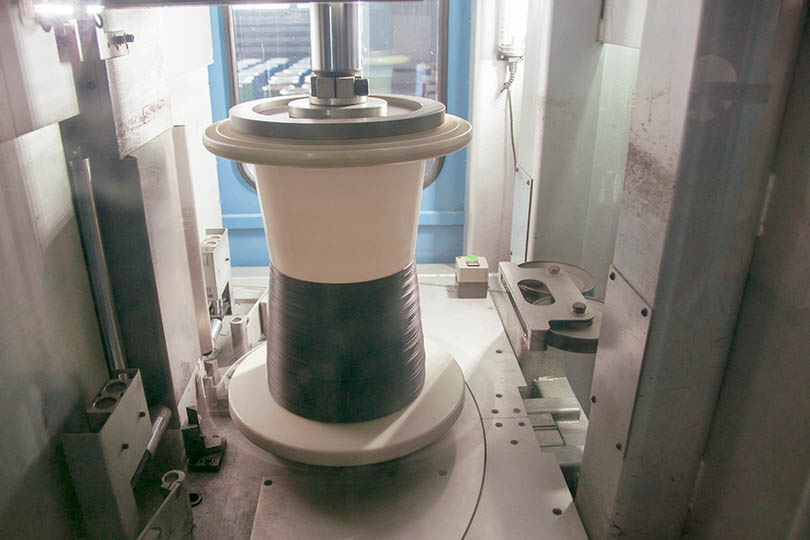

The special cable layout design make it positive-cone winding on the negative-cone reel. Make the cable winding on the reel like a tower to ensure the cable not collapsing. Reduce the cable mess probability mostly.

2、Reel can be recycled, lower cost

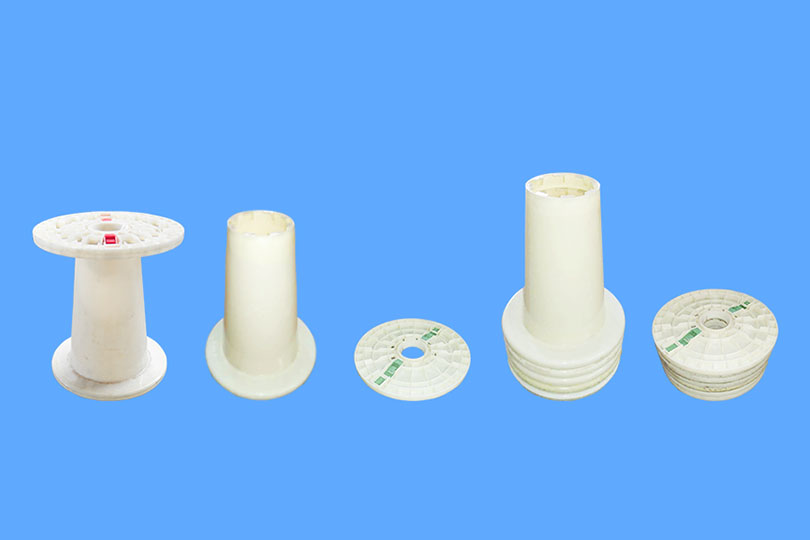

The material of 400 cone reel is ABS. The reel can be dismantled and recirculated, and can be stacked on the pallet compactly, greatly reducing the space and logistics recovery costs.

3、Larger capacity
The larger loading capacity of the reel, such as FLRY-B 0.35m ㎡ automotive wire, the length can be up to 15000m; large-capacity loading is more convenient for storage and transportation processes.

4、Intelligence and flexibility
The whole process is fully automatic and it can be matched with any existing extrusion line that customers have.

Reel Model:

Reel model

SPS

400/400

SPS

400/250

SPS

400/150

SPS

400/100

ODmm)

400

400

400

400

Heightmm

400

250

150

100

Capacity (dm3)

30.3

17.6

10

4.5


Main parameter:
1、 Suitable conductor: 0.22mm2-6.0mm2
2、 Suitable wire dia.: Ф1.0mm-Ф5.0mm round cable
3、 Tension range: 8N-80N
4、 Length counting accuracy: +/-3‰
5、 Speed: Max 1500m/min
6、 Daily capacity: max 1300km

SPS is one of the most advanced package system in the world, the statistics in the flexible cable factory shows the cable mess probability is very low and it is the best package solution for automotive wire and electronic wire.
