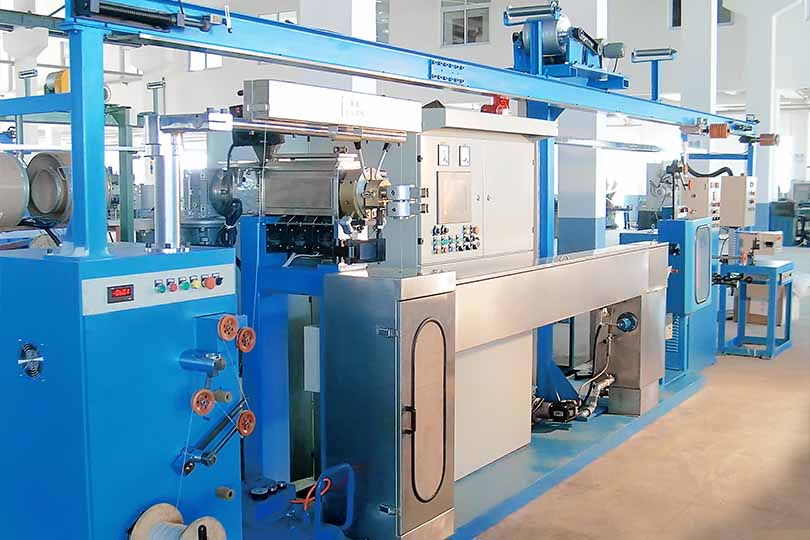

EXF20 FEP Micro Wire Line

Product Overviews :

Fluoropolymer can be used to make the wires and cables not only for aircraft, but also for the miniaturized and multifunctional consumer electronic products everywhere during our day life. As the one of important product in the supply chain, the micro wire is facing more and more challenges. As per the market demands, Singcheer developed the fluoropolymer extrusion lines, which are suitable for aerospace cable, electronic wire with the minimum thickness of 0.05mm.

Technical Specification :


Singcheer’s 20~45mm fluoropolymer extrusion lines for insulation, 65 line for jacketing will meet customer’s demands for the various thin wall micro wire with the minimum diameter to 0.18mm.





Type

Conductor

OD

(mm)

Extrusion output

(kg/h)

Speed

(m/min)

EXF20

#42 - #28

0.18-0.7

8

200

EXF35

#36 - #16

0.3-1.5

15

200

EXF50

#26 - #10

1.0-5.0

25

200
