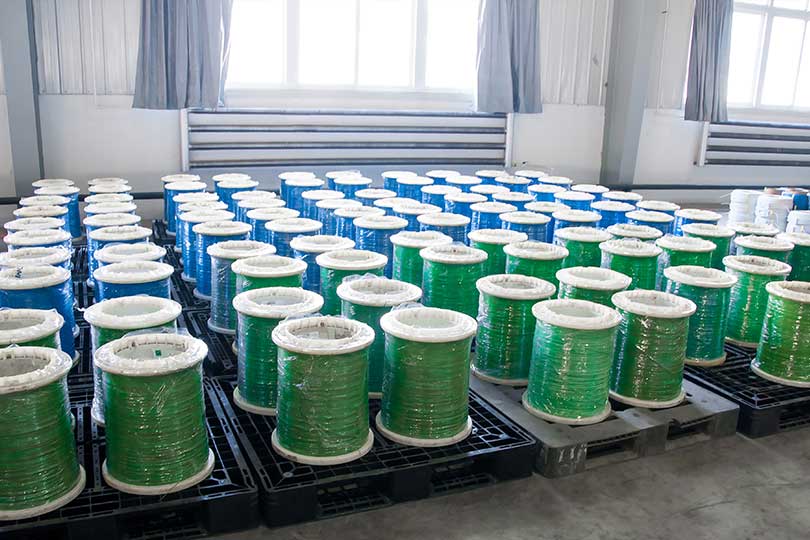

SPS is one of the most advanced package system in the world, the statistics in the flexible cable factory shows the cable mess probability is very low and it is the best package solution for automotive cable and electronic cable. The repeat usage spool, especially the empty spool can be stacked on the pallet compactly, decrease the transport cost for recycling the spool.
Technical Specification :

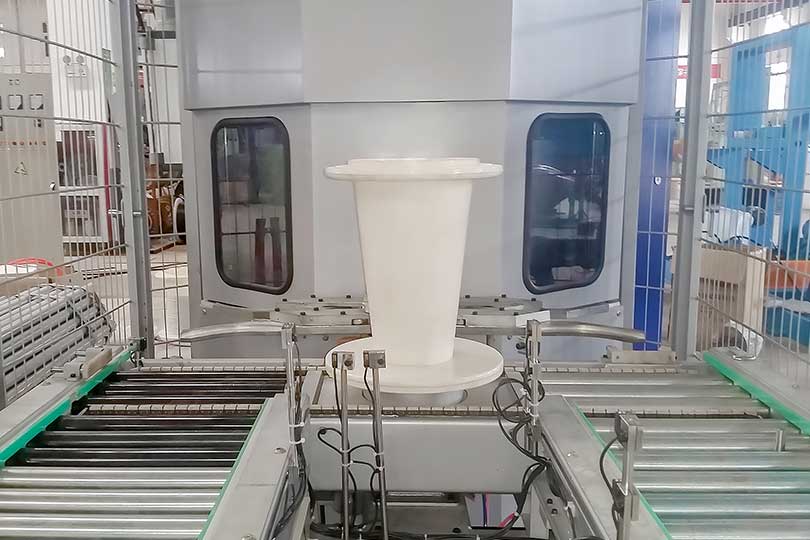

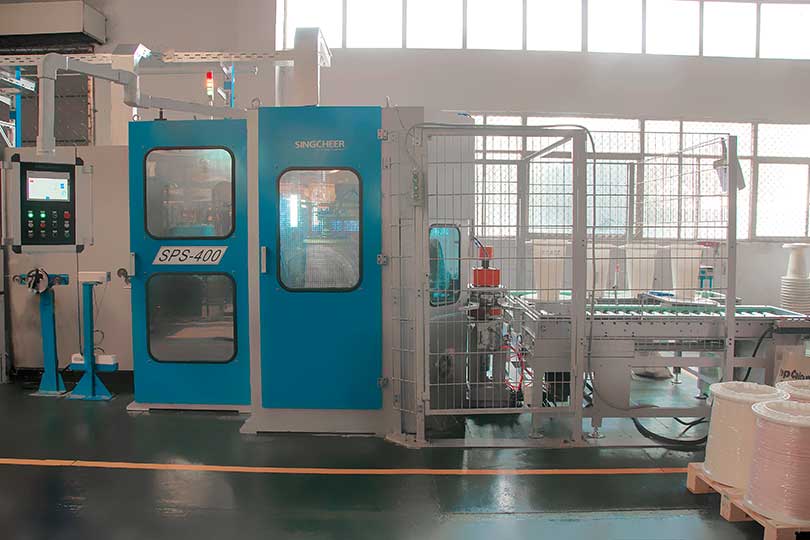

SPS400 with pulling and dancing wheel device . The spool for take-up is put on one rotation platform, shift by rotating the platform without stop or line speed reduction. All the process like meter counter, traverse, take-up, cutting, change over and transportation are controlled by the PLC system.
Main parameter:
● Suitable conductor: 0.22mm2-6.0mm2
● Suitable wire dia.: Ф1.0mm-Ф5.0mm round cable
● Tension range: 8N-80N
● Length counting accuracy: +/-3‰
● Speed: Max 1500m/min
Reel Model:
|
conical spool |
SPS 400/400 |
SPS 400/250 |
SPS 400/150 |
SPS 400/100 |
|
OD（mm） |
400 |
400 |
400 |
400 |
|
Height（mm） |
400 |
250 |
150 |
100 |
|
Capacity (dm3) |
30.3 |
17.6 |
10 |
4.5 |

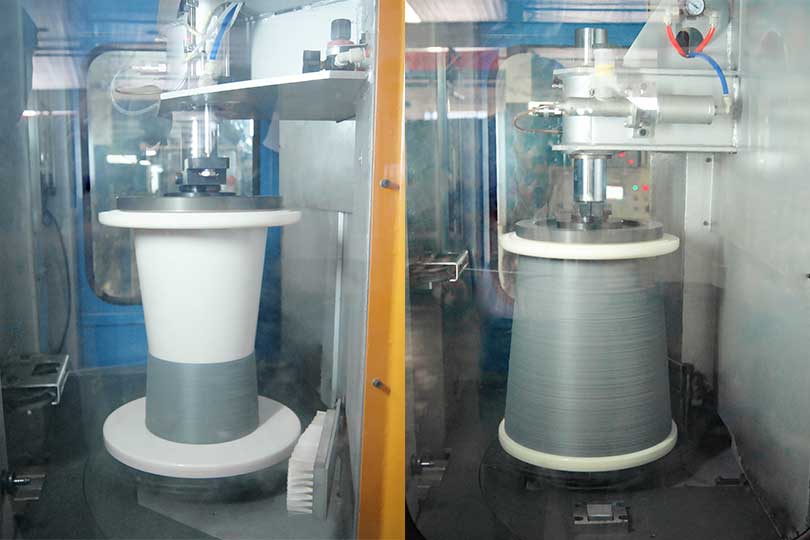

The special traverse design make it positive-cone winding on the negative-cone spool. Make the cable winding on the reel like a tower to ensure the cable not collapsing. Effectively reduce the disprder of cable.
