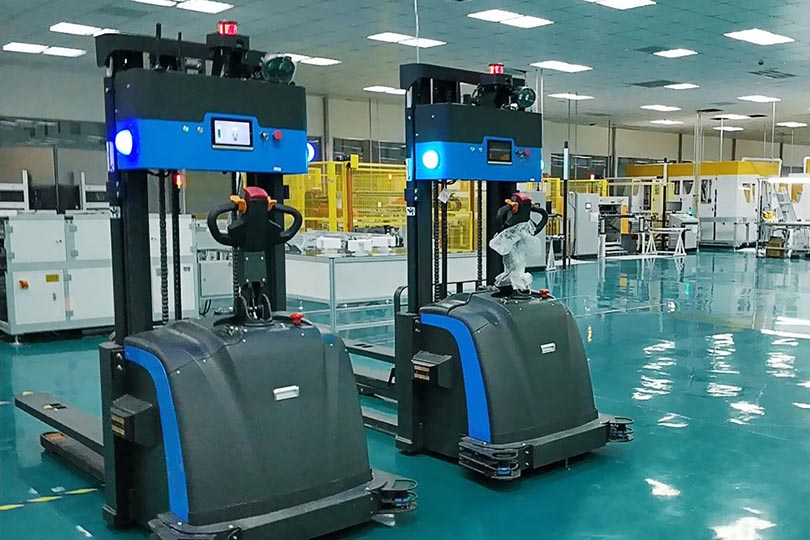

AGV Workshop Intelligent Logistic Solution

Product Overviews :

With the rise of labor costs, the automation and intelligence have been the development direction for manufacturing industry, the automatic conveying system consisted of multiple AGV is an important means to realize the automatic logistics transportation, which is of great significance to improve flexibility, reduce cost, production time and resource consumption.


The AGV system will achieve the raw material supply, the transfer and convey of the finished products and flexible distribution of storage goods. In the manufacturing process, the AGV system can also process the data exchange and intercange with MES (Manufacturing Execution System), WMS (Warehouse Management System), LCS (Production Line Control System), etc.  This will promote the rapid progress and development of flexible production lines, automated factories, and intelligent logistics.

Technical Specification :

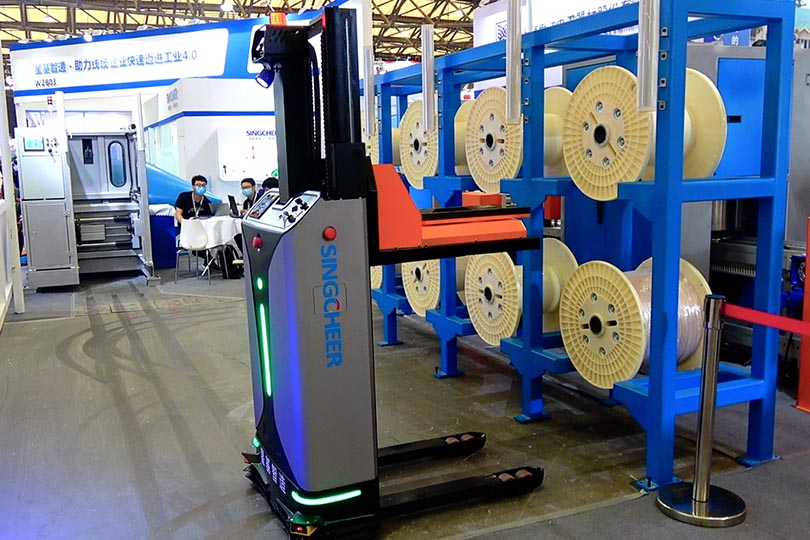

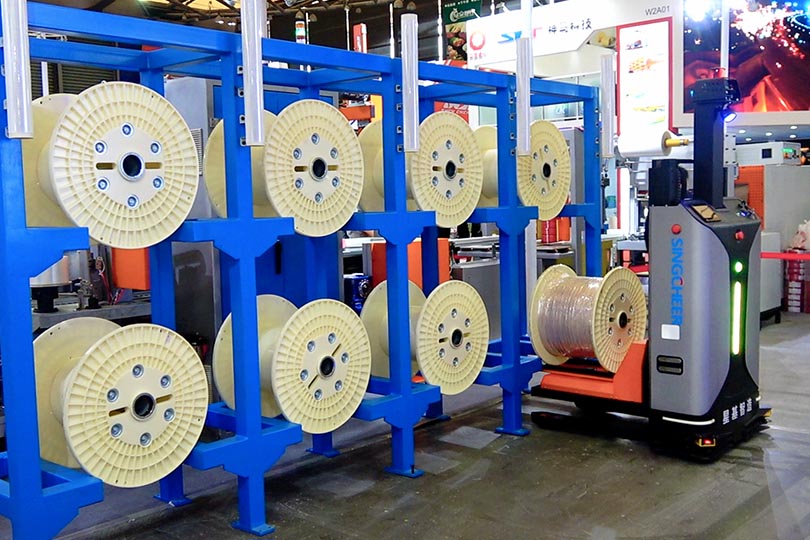

Based on the characteristics of the wire and cable industry, SINGCHEER developed an AGV logistics system suitable for the industry, it can realize intelligent logistics for different process  across workshops and floors. With the MES system, AGV can load and unload spools automatically, and reduce the labor intensity to the lowest.


Model AGV630 AGV630A AGV800 AGV1000 AGV1250 AGV1500 AGV3000
Goods to be carried Φ630 spool Φ630 spool Φ630/800 spools Φ800/1000 spools Φ1000/1250 spools 1200*1000 pallet    Φ1100*1700 basket Φ1250/1600 spools
Fork type special fors pool, with rotary  special fors pool, no rotary  special fors pool, with rotary  special fors pool, with rotary  special fors pool, with rotary  basket and pallet special fors pool, no rotary
Application pintle type payoff and takeup, storage area buncher,shaft type payff and takeup,   storage area pintle type payoff and takeup, storage area pintle type payoff and takeup, storage area pintle type payoff and takeup, storage area rod breakdown takeup,multi drawing machine payoff, storage area pintle type payoff and takeup, storage area
loadkg 500 600 800 1100 1300 2000 3000
max.lifting heightmm 1515 1515 1515 1515 1515 2960/120 120
fork to ground,mm (at lowest position) 210 87 220 235 250 95/87 87
Min. turning radiusmm 800 800 1130 1130 1130 1370/1130 2192
    1900 1900 2500 2500 2500 2600/2500 3500
driving motorkw 1.25 1.5 1.8
lifting motorkw 3 3 2.2
turning motorkw 0.3 0.4 0.4
navigating mode  laser+reflecting column
stopping position  accurancymm ±5 ±5 ±5 ±5 ±5 ±5 ±5
stopping angle accurancy   0.2°   0.3°   0.2°   0.2°   0.2°   0.3°   0.3°
navigating laser      shooting heightm 2~2.8(different heigh selection at the workshop
moving mode fowardbackwardturning
driving mode steering wheel
brake mode  electro-magnetic brake
moving speed/max. speed  1/1.5 (m/s) 1.3/1.6(m/s)
max. gradient (loaded/unloaded)(%) 3/5 3/5 3/5 3/5 3/5 5/8 6/8
over step (loaded/unloaded)mm 5 5 5 5 5 15 25
over obstacle (loaded/unloaded)mm 5 5 5 5 5 15 25
safety protection safe lasercovering the front, the back and the 2 sides
battery type LFP
rated voltage 24V
battery capacity 180Ah
charge-discharge cycles  1500
working hoursH 6~8
charging timeH 2
charige mode auto charge
manual operation mode change by rotary knobor remote controller change by rotary knobor by hand shank in the forlift
reserved distance between 2 lanes 400mm
reserved distance  between trolley and wall 300mm
singge charging pile  powerkw 4
network  5.8GHz wifi802.11 a/n
