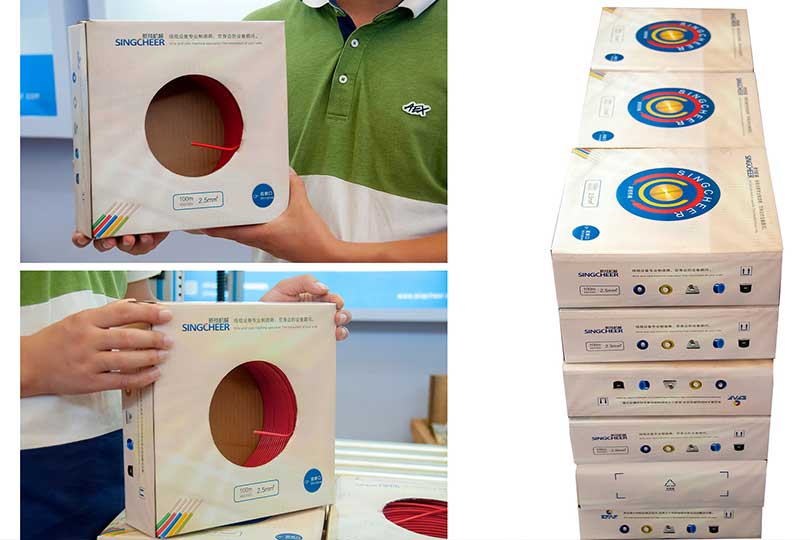

This packaging system is an automatic operation for packing in carton box and palletizing building wires and wrapping the pallet which has wire coils on by PE film.
Technical Specification :

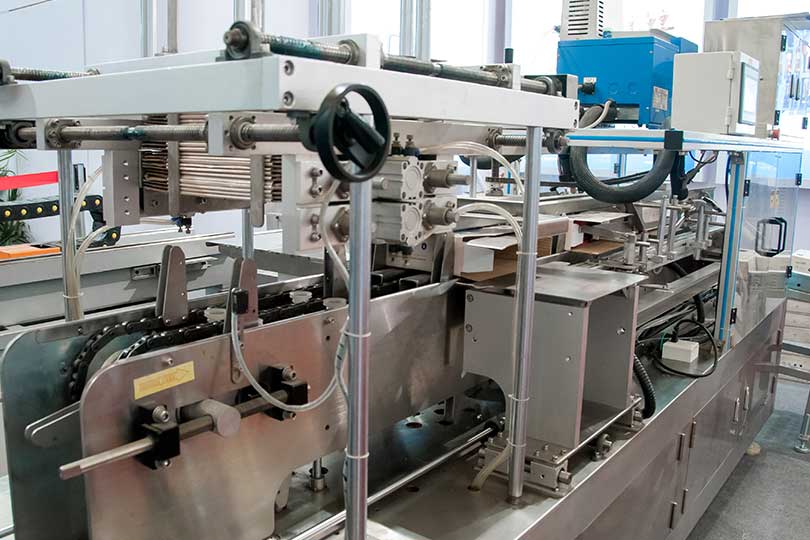

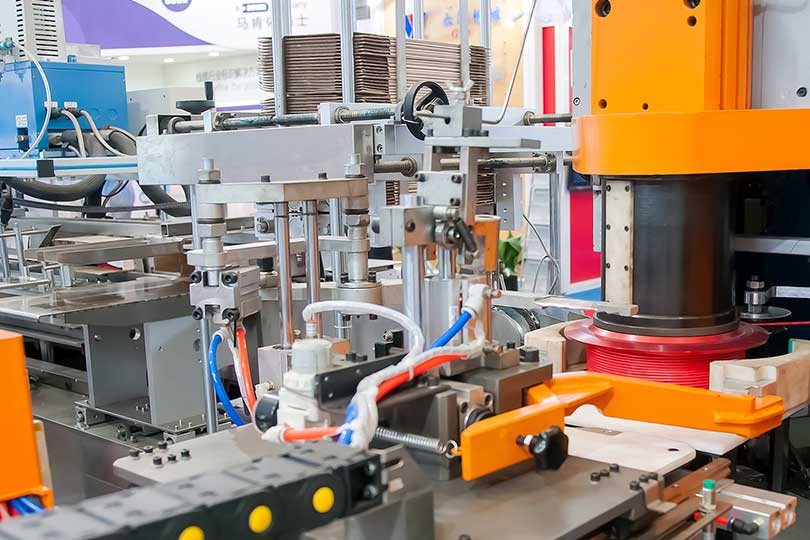

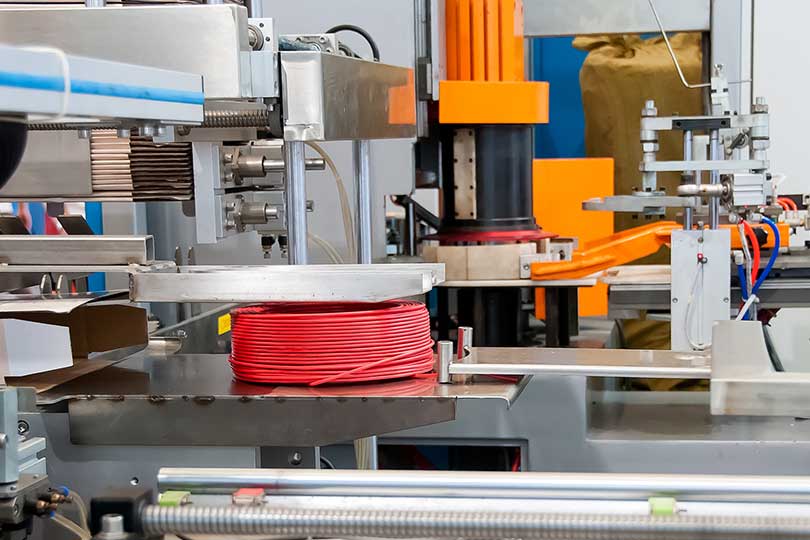

The packaging system consists of flyer pay-off machine, spark tester, MAC260 coiling machine, automatic boxing packaging machine, tapping machine, automatic palletizing machine and wrapping machine. It is a high cost performance coiling/boxing/palletizing packaging system with 12” HMI and 1200PLC control system.
Main Parameters:
1. Suitable for conuctor: Ф0.75mm²-6.0 mm²
2. Suitable for cable diameter: Ф2.0mm-5.0 mm
3. Coiling speed: Max 4coils/min, 100m/coil
4. Coil diameter: ODФ240mm，IDФ150mm，H:35~100 mm
5. Boxing size: 260*260, H:50~120
