Technical Specification :

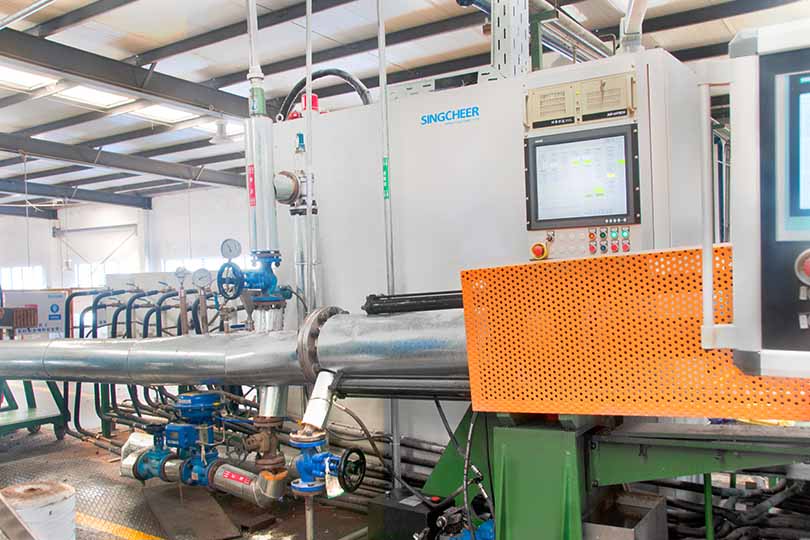

IPC 3 control system with industrial control computer +300PLC control, distributed IO structure. All the drive and detection instrument are with Profibus bus communication, all digital control technology, simple, flexible and reliable. Software is with WINCC programming, user-friendly operation interface and control precision.

Automatic steam inlet and automatic water level differential pressure control is one of the best means to ensure the quality of the products in the process of curing.


Main Parameters:

●    Conductor: 10～300mm²
●    Feeding Wire: Φ4～Φ30mm
●    OD: Φ6～Φ40mm

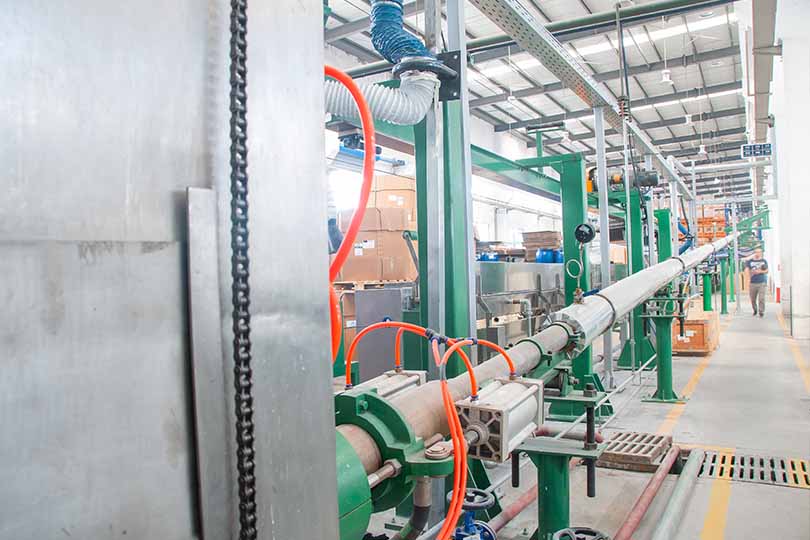

●    Vulcanized tube length: 84~132m
●    Steam Pressure: Max2.5MPA
●    Insulation Material: CPE, EPDM, EPR, CR, CSM, EVA  etc
●    Feeding Manner: pellet /slice

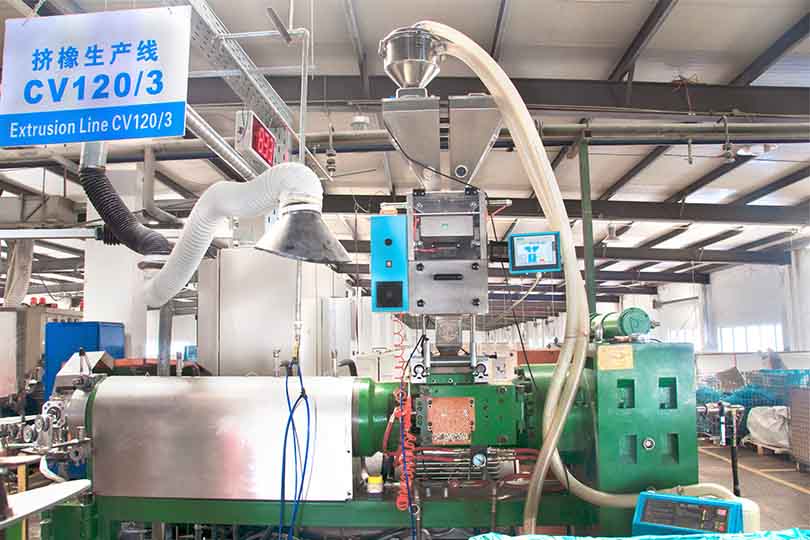

●    120 extruder: 600kg/h
●    90 extruder: 300kg/h
●    Temperature control system: Water temperature/oil temperature machine
●    Line Speed: MAX100 m/min


The perfect management of process and recipe is the strong guarantee for the consistency and standardization of your products to minimize the dependence of people.
